100mm x 40mm Tile Insert Strip Drain for 20mm Tile

100mm Tile Insert Linear Drain with 20mm Tile Tray

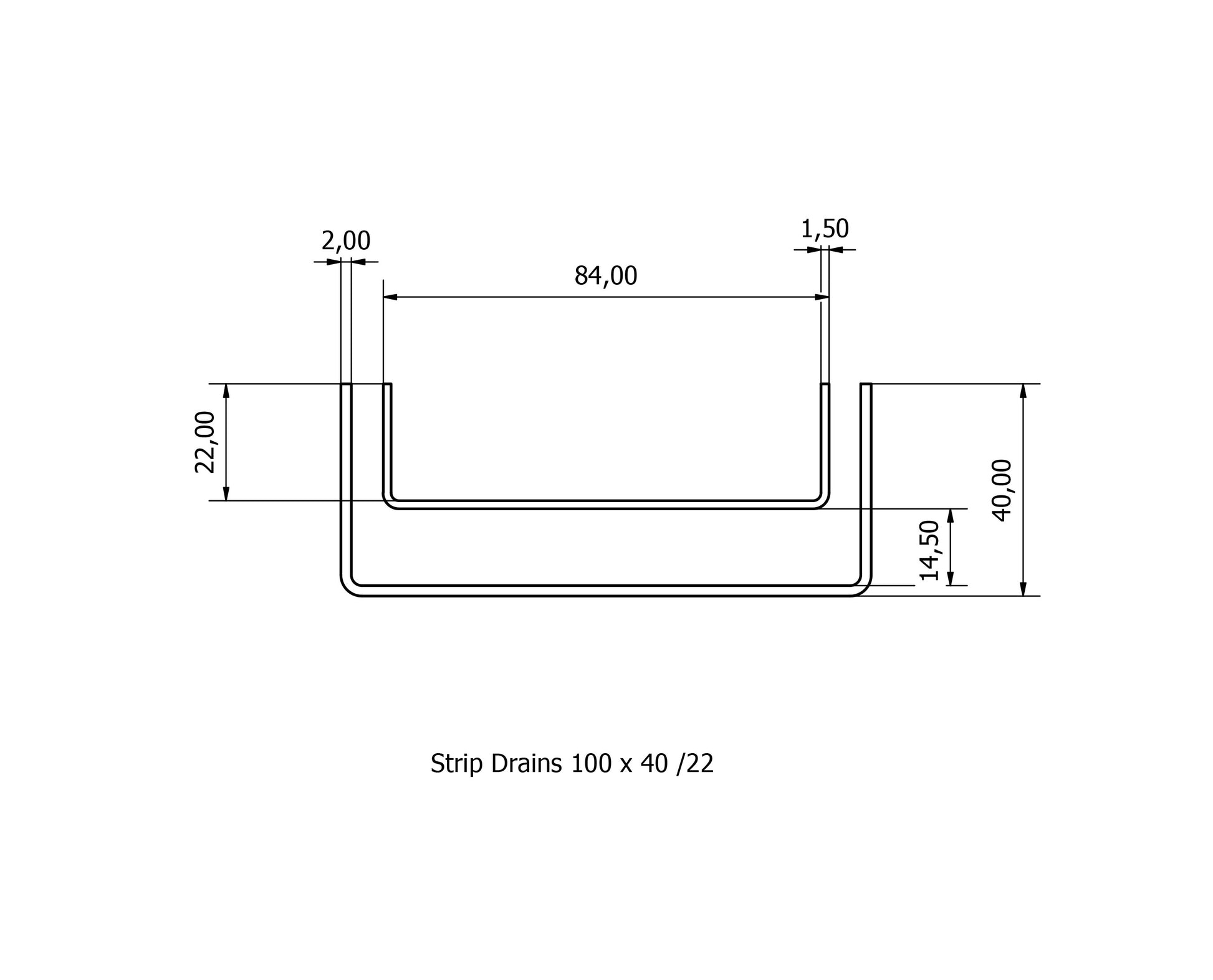

Deeper tray designed to fit 20mm tile, popular for outdoor areas. 316 Stainless Steel Tile insert drain 100mm x 40mm. Our tile linear drain¹ inserts are folded from 2mm 316L grade stainless steel.

The tray depth is 23.2mm, for tile applications where the tile depth is 20mm. We also fabricate a 14.5mm tray designed to fit a 12mm or 14mm tile depth.

Compliant 80mm minimum Outlet available.

The drains are fully TIG welded, exposed edges are linished, polished and passivated after manufacture.

For longer drains we can supply the inserts in smaller sections for ease of removal and cleaning. Please contact the seller for more details of your requirements.

All of our drains are manufactured and produced locally, in Australia, and are custom made to suit your specific requirements.

Custom Orders and Enquiries

Contact us now with your enquiries at info@stripdrains.com.au or phone 1300 308 893.
