Getting the drainage right in a driveway is one of those things that matters a lot more than it looks like it will. Get it wrong and you're dealing with pooling water, surface damage, and a drainage channel that doesn't cope when it rains hard. Today we'll cover what makes a strip drain the right choice for driveways, how to pick the correct size and spec, and what to look for in the material.
Why Strip Drains Work Well in Driveways
A driveway strip drain, also called a linear drain or channel drain, runs along a line rather than collecting water at a single point. That makes it the smarter option for driveways, where water needs to be intercepted across the full width of the surface rather than directed toward a single pit.
Long driveway crossovers in particular benefit from a strip drain installed at the boundary between the driveway and the street. Without it, water runs straight from the property onto the footpath or road, which can create slip hazards and cause problems with your council.
Choosing the Right Channel Width
Channel width affects how much water the drain can handle at once. For most residential driveways, a 100mm channel is adequate. For larger driveways, steep grades, or properties in high-rainfall areas, a wider channel, typically 115mm or larger, will cope better under a downpour.
If you're unsure, think about the surface area your drain needs to service. A longer driveway or a wide apron collects more water. A wider or deeper channel gives that water somewhere to go quickly.
Getting the Length Right
Standard off-the-shelf strip drains come in fixed lengths, usually 600mm, 900mm, or 1200mm. Most driveways don't match these dimensions exactly. That gap at the end isn't just untidy, it's a weak point where water gets under the channel, debris collects, and the installation starts to look like an afterthought.
Custom-length driveway strip drains are cut to your exact measurement. One piece, clean fit, no gaps. For a finished driveway installation, this is worth doing properly.
Load Rating: Don't Skip This Step
A driveway strip drain needs to handle vehicle loads, not just foot traffic. The grate sitting over the channel is what takes the weight, and it needs to be rated to the correct load class under AS 3996, the Australian Standard for drainage grates.
For a standard residential driveway used by passenger vehicles and light vans, Class B is the minimum. If you're expecting heavier vehicles at any point, a concrete truck during a build, a skip bin, or a removalist truck, Class C is the better call. Commercial driveways start at Class D.
Getting this wrong is a safety issue, not just a product one. Always confirm the load class before you order and consider choosing heavy duty driveway drainage grates.
Grate Style for Driveways

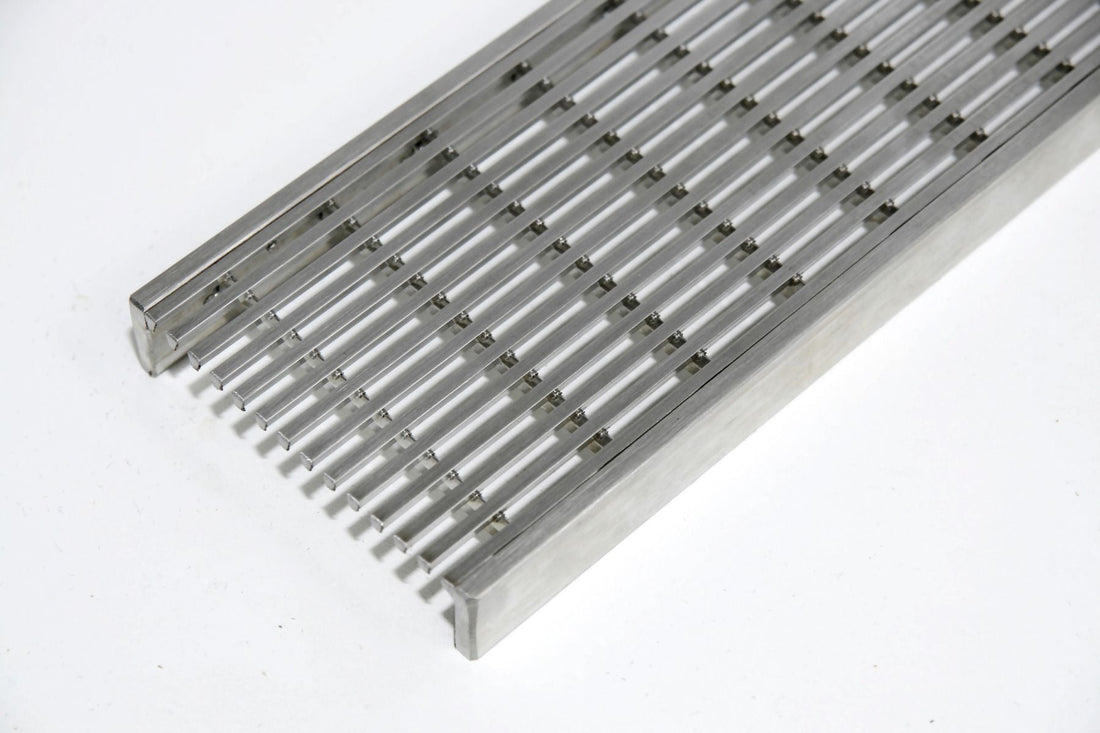

Wedge wire grates or Heel Guard Grates are the most common choice for driveway strip drains. The slotted profile handles debris and leaf matter well without clogging as quickly as a fine mesh, and the flat surface sits flush with the surrounding concrete or paving.
Tile insert grates are less common in driveways but work well where the driveway surface is paved and you want the drain to blend in. They're better suited to pedestrian areas than heavy vehicle zones, so confirm the load rating applies before specifying them for vehicle traffic.
Why Material Choice Matters Outdoors
Driveways are fully exposed. UV, rain, vehicle fluids, and temperature swings take a toll on cheaper materials over time. Polymer and coated mild steel channels can crack, warp, or corrode within a few years in outdoor conditions.
Stainless steel strip drains hold up. They don't rust, they don't need repainting, and they maintain their structural integrity under load year after year. For a permanent installation in a driveway, stainless steel is simply the more durable option.
Strip Drains: Custom Driveway Strip Drains Made in Australia
At Strip Drains, we manufacture stainless steel driveway strip drains to order, cut to your exact length and specified to the correct load class. Whether it's a single residential crossover or a commercial driveway installation, we'll help you get the spec right before anything is ordered.
Get in touch with our team or browse our driveway drain range online to find the right solution for your project.
