If you are tiling a shower, wet room or pool surround, the drain you choose affects more than just water flow. It affects how the finished floor looks, how the tiles sit, and how easy the space is to clean and maintain long term. Tile insert drains are designed specifically for tiled surfaces, and that distinction matters more than most people realise at the time of specifying.
Here is why tile insert drains consistently perform better in tiled wet areas compared to standard wedge wire or slotted grate drains.
The Drain Disappears Into the Floor

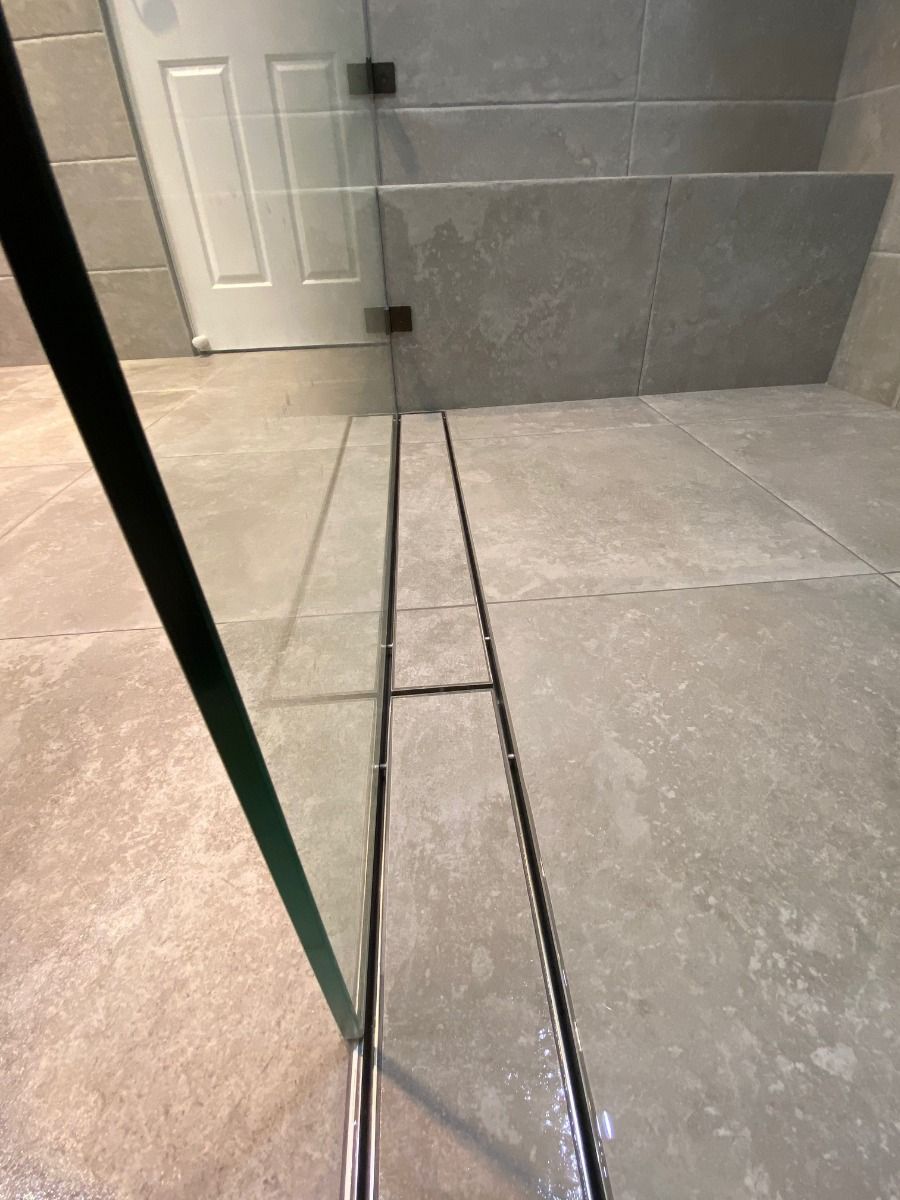

A tile insert drain holds a cut tile in its stainless steel tray, so the drain sits flush with the surrounding floor. From above, you see tile running through the space continuously. The drain does not break the visual plane of the floor the way a steel grate does.
For bathrooms and wet rooms where the design brief calls for a seamless finish, this is the most practical way to achieve it. There is no visible grate to interrupt patterned tile work, no contrasting material sitting in the middle of the floor.
The Tile Finish Holds Up in Wet Conditions
Tiled wet areas see constant water exposure, cleaning products, and foot traffic. A tile insert drain means the surface material of the drain matches the rest of the floor exactly, same tile, same finish, same slip rating. You are not introducing a second surface material that wears differently, discolours, or requires different maintenance.
This is especially relevant for outdoor wet areas, pool surrounds and commercial amenities where long-term durability and consistent appearance matter.
Floor Falls Work With the Drain, Not Against It
Tiled shower floors are laid with a fall toward the drain. A tile insert drain that runs the full length of a wall allows the entire floor to fall in one direction, which simplifies the tiler's work and produces a more accurate, consistent fall. Trying to achieve the same result with a central point drain means the tile has to fall from all four sides toward a single small outlet, which creates more cuts, more complexity, and more risk of ponding if the falls are not exact.
A linear tile insert drain placed at one end of the shower produces a cleaner slope and fewer grout joints, which also reduces long-term maintenance.
Standard Grate Drains Look Mismatched in a Tiled Floor
A wedge wire or slotted grate drain performs well in areas where the drain is expected to be visible, such as driveways, pool surrounds with a concrete or stone finish, or commercial kitchens. In a tiled shower or bathroom, the same drain introduces a steel grid that sits at odds with the surrounding tile work.
The tile insert format resolves this. The drain hardware is functional stainless steel beneath the tile tray. What sits on the surface matches everything around it.
Choosing the Right Tile Insert Drain for Your Project
Getting the specification right comes down to three things: profile width to suit your shower size, tile tray depth to match your tile thickness, and outlet position to suit your floor waste location.
Strip Drains manufactures tile insert drains in 70mm, 97mm, 115mm and 100mm x 40mm profiles, with tile tray options for standard thickness tiles and 20mm pavers. All profiles are available in 316L stainless steel.
If you are specifying a tile insert drain for the first time, the guide How to Choose the Right Tile Insert Drain for Your Shower covers each decision in detail. To browse the full range, visit the tile insert drain collection or contact us.
